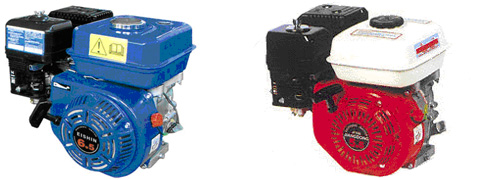

Honda type gasoline engine
Speedy start,smooth operation and low vibration;
OHV Design permits low fuel consumption and noise;
Lightweight and compact structure;
Reliable transistorized magneto-ignition system;
Different type of PTO shafts meet various demands;
Low exhaust emissons meets EU standard;
A wide range of application-ideal power supply for generating sets in tourism industry,construction site,agricultural machines and garden machines etc.




Specifica MODEL tions

G160

G200

G240

G270

G340

G390

Type

Single-cylinder, 25°-inclined, 4-storke, OHV, air-cooled

Displacement

163cc

196cc

242cc

270cc

337cc

389cc

Bore

68mm

68mm

73mm

77mm

82mm

88mm

Stroke

45mm

54mm

58mm

58mm

64mm

64mm

Speed

3600RPM

Rated output

4.5hp

5.5hp

6.5hp

8.0hp

9.0hp

10.5hp

Max. output

5.0hp

6.0hp

7.0hp

8.8hp

10hp

12hp

Max. torque

1.1kgm/2500RPM

1.35kgm/2500RPM

1.7kgm/2500RPM

1.95kgm/2500RPM

2.4kgm/2500RPM

2.7kgm/2500RPM

Fuel consumption

290 g/hp.h

290g/hp.h

270g/hp.h

270g/hp.h

270g/hp.h

270g/hp.h

Oil Consumption(g/kw.h)

6.8

Compression Ratio

8.5:1

8.5:1

8.2:1

8.2:1

8.0:1

8.0:1

Output direction of PTO

Counter-colowise

Starting system

Recoil starter

Recoil/electric starter

Cooling system

Forced air

Ignition system

TCI(Transistorized pointless)

Fuel

Unleaded petrol

Fuel tank capacity

3.7L

3.7L

6.0L

6.0L

6.5L

6.5L

Lub. Oil capacity

0.6L

0.6L

1.1L

1.1L

1.4L

1.4L

Oil alarm

Built-in

Continuous working time

2h15min

2h

2h45min

2h

2h15min

2h

Noice level

67dB(A)at7mts

67dB(A)at7mts

69dB(A)at7mts

70dB(A)at7mts

71dB(A)at7mts

72dB(A)at7mts

Dimensions LxWxH (mm)

390x340x365

495x425x495

495x455x515

weight

18kg

19kg

28kg

28kg

34kg

34kg
