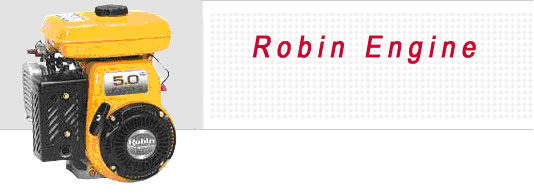

Robin type gasoline engine
Specifications
1.We continuously improve the design of cylinder,air-cleaner,muffler and fuel-tank to make this product to fit any purpose.
2.Our advanced transistor magnet ignition system make it very easy to start the engine.
3.We reduce the environment pollution to the loweast through the advanced design of muffler and air-cleaner.
4.To satisfy any of your requirements,we can provide you multiform design of same model

Model	EY15D		EY20D		EY28D
Type	Single-cylinder 4-stroke, side valve, air-cooled vetical gasoline engine
Bore ×stroke(mm)	63 × 46		67 × 52		75 × 62
Displacement(ml)	143		183		273
Compression ratio	65:01:00		65:01:00		65:01:00
Rated speed(rpm)	3000	3600	3000	3600	3000	3600
Rated output(kw)	1.6	1.6	2.2	2.6	3.5	4
Max output KW(HP)/rpm	2.61(3.5)/4000		3.73(5)/4000
Max torque(N.m/2800rpm)	6.66		9.31		13.72
Ignition fashion	Zero touch point Transistor (CDI)
Starting fashion	Recoil starter and Manual or Electric Start
Direction of Rotation	Counterclockwise,facing P.T.O.shaft
Fuel tank capacity(L)	2.8		3.8		5.5
Spark plug	E6TC
Fuel trademark	90# unleaded gasoline
Oil trademark	10W30SAE
Continuous running time(h)	3.5		3.5		3
Overall dinebsion L× W× H(mm)	303×300×368		319×317×392		346×386×440
Package size (mm)	360×350×420		380×370×440		405×435×480
N.W/G.W(kg)	13/15		15/17		21/23
