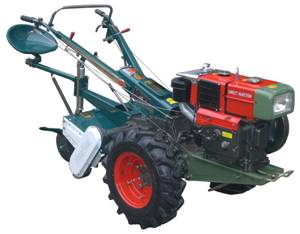

Model of Power Tiller |
Unit |
HF-101A |
|
Structure weight |
Without rotavator |
kg |
258 |
|
With rotavator |
350 |
|
Working weight (with rotavator) |
kg |
395 |
|
Overall dimensions (LxWxH) |
mm |
2700x 960 x 1220 |
|
Number of blades |
PCS |
16 |
|
Rototilling width |
mm |
700 |
|
Type of tractor |
Single axle, dual-purpose for both traction & drive |
|
Travelling speed |
Forword |
Km/h |
2.19, 3.62, 5.79, 7.37, 12.20, 19.48 |
|
Reverse |
3.58, 12.03 |
|
Type size |
|
6.00-12 |
|
Wheel track |
mm |
650~790(normally use 790) |
|
Min. ground clearance |
mm |
214 |
|
Min. turning radius |
m |
0.9（with no rotavator） |
|
Model of engine |
|
R192N |
|
Type of engine |
|
Horizontal 4-stroke |
|
Bore x stroke |
mm |
92×90 |
|
Total displacement |
L |
0.598 |
|
Compression ratio |
|
18：1 |
|
Turing speed of crankshaft |
rpm |
2400 |
|
1-hour rated output |
KW/hphp |
8/10.88 |
|
12-hour rated output |
KW/hp |
7.35/10 |
|
Specific fuel consumption |
g/kw.h |
≤281.4 |
|
Specific lube oil consumption |
g/kw.h |
≤2.04 |
|
Cooling mode |
|
Condenser (Radiator) |
|
Main farm implements (optional) |
100-640型防滑轮
Anti-skid steel wheel Model 100-680
1LS-125型单铧犁
Single-furrow plough Model 1LS-125
50BPZ-45型喷灌机
Sprinkler Model 50BPZ-45
4GL-100型割晒机
Swather/reaper Model 4GL-100
7C-0.8型拖车(标准型)
Trailer 7C-0.8 (Standard) |
| | |
