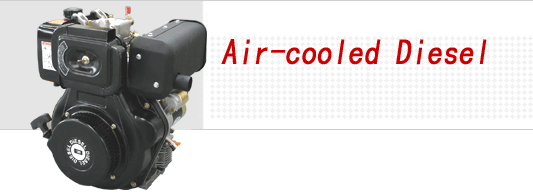

Yanmar type air cooled diesel engine



Heavy Duty and Long-Life Air-cooled Diesel Engines
Compact in structure and small in size


Direct injection combustion
New type fuel injection system and combustion system you maximum power from every drop of diesel and miniaturize of waste gas.



Multi-choice PTO shafts
with a choice of 4 kinds of PTO coupling available. Wherever compact and economical drive is needed, HAILIN fits the bill, giving the long-term dependability only diesels can offer.


Efficient air cleaner system
High-performance air-filtering structure device suitable for various environment. In short,special new oil bath air-filter ideal for long-term work on any rough dusty worksite.


Recoil manual starter
A short and smooth pull of the toggle kicks off the engine, as simple as its gasoline cousin. It is made easy by a special auto-return decompressor and efficient combustion system. Electric starting is also a useful option.



Specifications



MODEL D170F(E) D178F(E) D186F(E) D170F(A) D178F(A) D186F(A)

Type

Single-cylinder, Vertical, 4-stroke air-cooled diesel engine

Combustion System

Direct Injection

Bore X Stroke (mm)

70 X 55

78 X 62

86 X 70

70 X 57

78 X 64

86 X 72

Displacement (cc)

211

296

406

211

296

406

Engine Speed (rpm)

3000

3600

3000

3600

3000

3600

3000

3600

3000

3600

3000

3600

Maximum output (hp)

3.8

4.2

5.4

6

8.8

10

3.8

4.2

5.4

6

8.8

10

Continuous output (hp)

3.4

3.8

5

5.5

7.7

9

3.4

3.8

5

5.5

7.7

9

Fule consumption

209g/hp.h

218g/hp.h

206g/hp.h

215g/hp.h

201g/hp.h

210g/hp.h

209g/hp.h

218g/hp.h

206g/hp.h

215g/hp.h

201g/hp.h

210g/hp.h

Power Take Off

Crankshaft or Camshaft (Camshaft PTO rpm is 1/2)

Output direction of PTO

Counter-colowise

Cooling system

Forced air

Governor system

Centrifugal weight system

Fuel

Diesel

Starting System

Recoil or Electric

Fuel Tank Capacity (L)

2.5

3.5

5.5

2.5

3.5

5.5

Lube Oil Capacity (L)

0.75

1.1

1.65

0.75

1.1

1.65

Continuous working time

2.5h

2.5h

2.5h

Noice level

82dB(A) at 4mts

85dB(A) at 4 mts

88dB(A) at 4mts

Dimensions LxWxH (mm)

332 x 392 x 416

383 x 421 x 450

417 x 470 x 494

332 x 392 x 416

383 x 421 x 450

417 x 470 x 494

Dry Weight (Recoil) (kg)

27

33

48

27

33

48

Dry Weight (Electric) (kg)

32

38

53

32

38

53
