Kubota type engine
MAIN CHARACTERISTICS
1.Compact in structure, nice in appearance, lighter in weight, smaller in size.
2.Low noise, low fuel consumption, highter output.
3.Low vibration, smooth running, reliable performance.
4.Easy to start, easy maintenance.
SPECIFICATIONS
 |
|
Model |
186N / EC95N |
192N / EC110N |
|
Type |
single cylinder horizontal four-stroke |
|
Bore×stroke(mm) |
86×90 |
92×90 |
|
Compression ratio |
21：1 |
|
Combustion chamber type |
swirl-chamber |
|
Rated output kw(hp) |
6.25(8.5) |
7.35(10) |
|
Continuous output kw(ps) |
6.99(9.5) |
8(11) |
|
Rated speed(rpm) |
2400 |
|
Fuel consumption at reted output g/Kw h(g/hp h) |
≤286(210) |
|
Max.torque N·m(kg·m) |
29.4(3.0) |
34.5(3.5) |
|
Speed at max torque(rpm) |
1800 |
|
Lubrication method |
Pressure combined with splashing |
|
Cooling system |
Radiator or Hopper |
|
Starting method |
Hand starting or electric start |
|
Head lamp |
12V 45W/45W |
|
Measurements(L×W×H)(mm) |
765*350*518 |
|
Net weight(Kg) |
110 |
115 |
 |
|

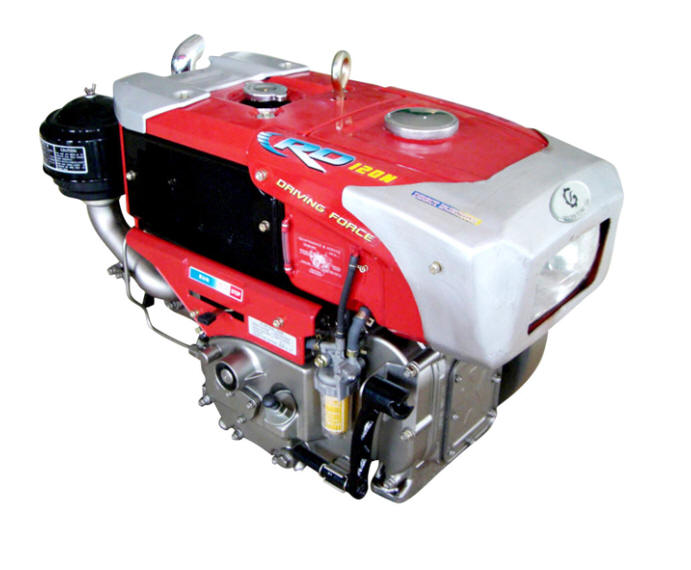

Model |
RD90N |
RT90N |
RD120N |
RT120N |
|
Type |
Single-cylinder、horizoztal、4-stroke、water-cooling |
|
Displacement l |
0.487 |
0.651 |
|
Bore×Stroke mm |
86×84 |
96×90 |
|
Continuous output kw(ps)/rpm |
5.88（8）/2400 |
8.08(11)/2400 |
|
Maximum output kw(ps)/rpm |
6.62(9)/2400 |
8.82(12)/2400 |
|
Combustion system |
Direct injection |
swirl |
Direct injection |
swirl |
|
Specific fuel consunption g/kw.h |
255 |
280 |
250 |
275 |
|
Start method |
Hand crank |
|
Lubricating oil capacity l |
2.3 |
3 |
|
Cooling water capacity l |
2.1 |
2.3 |
|
Net weight kg |
88 |
113 |
|
Overall dimensions(mm)(length×width×height) |
728×360×485 |
768×360×520 | |
